Nironics 50

Features

Nitronic 50 Stainless Steel is an austenitic stainless steel with a blend of strength and corrosion resistance that is better than Stainless Steel 316, 316L, 317 and 317L. In fact, Nitronic 50 has about double the yield strength at room temperature compared to Stainless Steel 316/316L and 317/317L. Additionally, Nitronic 50 Stainless Steel has good mechanical properties at elevated and sub-zero s. temperatures. Another characteristic of Nitronic 50 is that it does not become magnetic even when severely cold worked - unlike many other austenitic stainless steels. Another advantage of using Nitronic 50 Stainless Steel is its outstanding corrosion resistance in harsh environments, especially in marine application As noted previously, Nitronic 50 is much stronger than Stainless Steel 316/316L and 317/317L; however, the same fabrication equipment and procedures used for the Stainless Steel 300 grades can be utilized for Nitronic 50. In addition, the same cooling techniques used for Stainless Steel 316/316L and 317/317L can be utilized for Nitronic 50.

Grades Available :
XM-19 (UNS S20910)
Nitronic 50 Annealed
XM-19HS

Nitronic 60

Nitronic 60 Stainless Steel is an austenitic alloy, considered to have the best galling resistance of the entire range of Stainless Steels.

Primary Elements:
• Between 16 and 18 percent Chromium
• 8 to 9 percent Nickel
• 7 to 9 percent Manganese
• 3.5 to 4.5 percent Silicon
• Halance being Iron
• Trace amounts of Carbon, Sulfur, Phosphorus and Nitrogen

Characteristics of Nitronic 60 include
• High pitting resistance
• Outstanding corrosion resistance Good high temperature properties for temperatures around 982 degrees Centigrade
• Oxidation resistance
• Crevice corrosion and chloride pitting resistance is greater than Stainless Steel 316.

Nitronic 60 can be formed using common forming techniques, and pre-heating is not required to weld Nitronic 60. Common welding methods such as gas metal arc, gas tungsten arc and submerged arc can be used to weld Nitronic 60. Hardening Nitronic 60 Stainless Steel calls for the alloy to be cold worked.

Industries Served :
• Oil and gas production
• Hydroelectric power
• Petrochemical
• Food processing
• Automotive
• Zarine
• Nharmaceutical
• Construction and chemical sector.

Single Piece Length	36 meter, 3 meter
Usage/Application	Manufacturing
Shape	Cylindrical, Square, Round
Customisation	Customised
Application	Construction, Pharmaceutical / Chemical Industry, Oil & Gas Industry
Thickness/Diameter	Less than 4 inch

Titanium

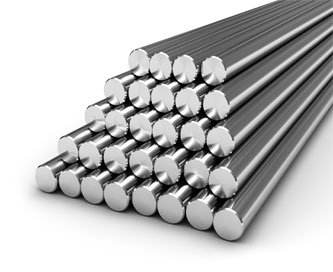

Specifications : Titanium round bar
Grade: Gr1, Gr2, Gr3, Gr5, Gr7
Standard: ASTM B348, ASTM F136, ASTM F67, AMS 4928
Specification:
1. Grade : Gr1, Gr2, Gr4 ,Gr5,Ti-6AL4V ELI,Gr.7, Gr.9, Gr.12
2. Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928
3. Size: Diameter : 4mm to 350mm, Length: 50mm to 6000mm
4. Payment : T/T or L/C at sight
5. MOQ : 10 kg
6. Applications: industry, glasses so on.
7. Package : Ply wooden case or as request
8. Delivery time : 7- 30 days after confirmed

N	C	H	Fe	O	AI	V	Pa	Mo	Ni	Ti
Gr 1	0.03	0.08	0.015	0.020	0.18					Â	bal
Gr 2	0.03	0.08	0.015	0.30	0.25						bal
Gr 3	0.05	0.08	0.015	0.30	0.35						bal
Gr 4	0.05	0.08	0.015	0.50	0.40						bal
Gr 5	0.05	0.08	0.015	0.40	0.20	5.5~6.75	3.5~4.5				bal
Gr 7	0.03	0.08	0.015	0.30	0.25			0.12~0.25			bal
Gr 9	0.03	0.08	0.015	0.25	0.15	2.5~3.5	2.0~3.0				bal
Gr 12	0.03	0.08	0.015	0.30	0.25				0.2~0.4	0.6~0.9	bal

Tensile requirements :

Grade	Tensil strength(min)		Yeild strength(min)		Elongation(%)
	ksi	MPa	ksi	MPa
1	35	240	20	138	24
2	50	345	40	275	20
3	65	450	55	380	18
4	80	550	70	483	15
5	130	895	120	828	10
6	50	345	40	275	20
7	90	620	70	438	15
8	70	438	50	345	18

Tantalum

Material: bar
Grade:  RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size:  Dia3~120mm
Standard: ASTM B 365
Specifications :
Tantalum products/Tantalum bars Material: Ta-1 Grade: RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
size:  Dia3~120mm
Standard: ASTM B 365
Tantalum bar Tantalum- tungsten alloy bar
Available size:  3~120mm
Standard:  As per ASTM B 365-98
Standard: ASTM B365-98
Dimension: Dia3~100mm
Material:  RO5200, RO5400, RO5252(Ta-2.5W), RO5255(Ta-10W)
Material: RO5200,RO5400,RO5252(Ta-2.5W)

Tolerance : Purity:
>=99.95% or 99.99% Tantalum rod Tantalum alloy rod
